Total Power: 40 Watts Input Voltage: 100-277 VAC Outputs: Single from 6 VDC to 36 VDC Indoor or Outdoor Applications Active Power Factor Correction UL1310, Class 2 and UL 48 Compliant IP66 Compliant |
|
Custom Driver for the Retro-Fit Street and Universal Lumenaire series |
|

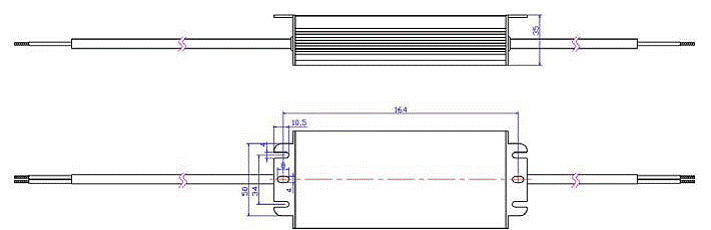

Dimensions |
|
Input Voltage Range: 100 ~ 277 VAC Frequency: 47 to 63 Hz Power Factor: >0.92 at full load Inrush Current: <30.0 Amps maximum @ 230 VAC, cold start 25ēC Input Current: 0.50 Amps maximum at 115 VAC Efficiency: 85% typical at maximum load Maximum Power: 40W Current Accuracy: +/- 1% (when applicable) Load Regulation: +/- 3% Leakage Current: 300 uA Typical Hold Up Time: Half Cycle Protection: Output Over-Voltage, Output Over-Current, and Output Short Circuit Protection with Auto Recovery |
|
Operating Temperature: -30ēC to +60ēC Maximum Case Temp. 90°C Storage Temperature: -40ēC to +85ēC Humidity: 5% to 95% Cooling: Convection Vibration Frequency: 5 to 55 Hz/2g, 30 minutes MTBF: >100,000 Hours at full load and 25ēC ambient conditions EMC: Compliant to CISPR 22 Class B, CISPR 14-1 Class B, GB4343 1-2003, GB17625.1-2003 |
|
Environmental Specifications |
|
Electrical Specifications |
|
Total Power: 60 Watts Input Voltage: 90-305 VAC Outputs: Single from 12 VDC to 170 VDC High Efficiency Indoor or Outdoor Applications Active Power Factor Correction IP67 Compliant |
|
Electrical Specifications |
|
Environmental Specifications |
|
Input Voltage Range: 90 - 305 VAC, Frequency: 47 to 63 Hz Power Factor: >0.96 at full load Input Current: 0.60 Amps maximum at 100 VAC Efficiency: 91% typical at maximum load Maximum Power: 60W Line Regulation 1% Load Regulation: 3% Turn-on Time Delay 3 Seconds Protection: Output Over-Voltage, Output Over-Current, Output Short Circuit Protection with Auto Recovery, Over Temperature Protection |
|
Operating Temperature: -35ēC to +70ēC Maximum Case Temp. 90°C Storage Temperature: -40ēC to +85ēC Humidity: 10% to 100% Cooling: Convection MTBF: 300,000 Hours at full load and 25ēC ambient conditions per MIL-HDBK-217F Lifetime 160,000 Hours @ 25ēC ambient
|
|
Dimensions |
|
For Higher output systems custom drivers are available |
|
For Higher output systems custom drivers are available |
